SINGLE ZONE MONITOR

MONITORS AND RECORDS OPERATION OF DIVIDER BLOCK LUBRICATION SYSTEMS

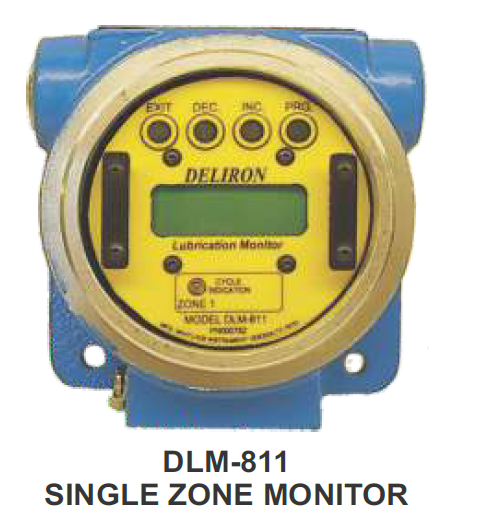

DLM-811 SINGLE ZONE MONITOR

DISPLAY: Automatically scrolls between Pints/Day, Cycle Time, Total Strokes, System Run Time.

Pressing (INC.) Will lock display at the present function.

Pressing the (EXIT) will release the scroll lock and return to automatic.

DISPLAY FUNCTIONS:

Pints/Day ZONE#1

Z1 XXX.X P/D Pints/Day Zone #1

Cycle time ZONE#1

Z1 XXX.X SEC Cycle time in seconds

PREV. XXX.X Previous Cycle time for Zone#1

Total strokes ZONE#1

Z1 XXXXXX STK Total Strokes Zone#1

Total run time in hours 000000.000

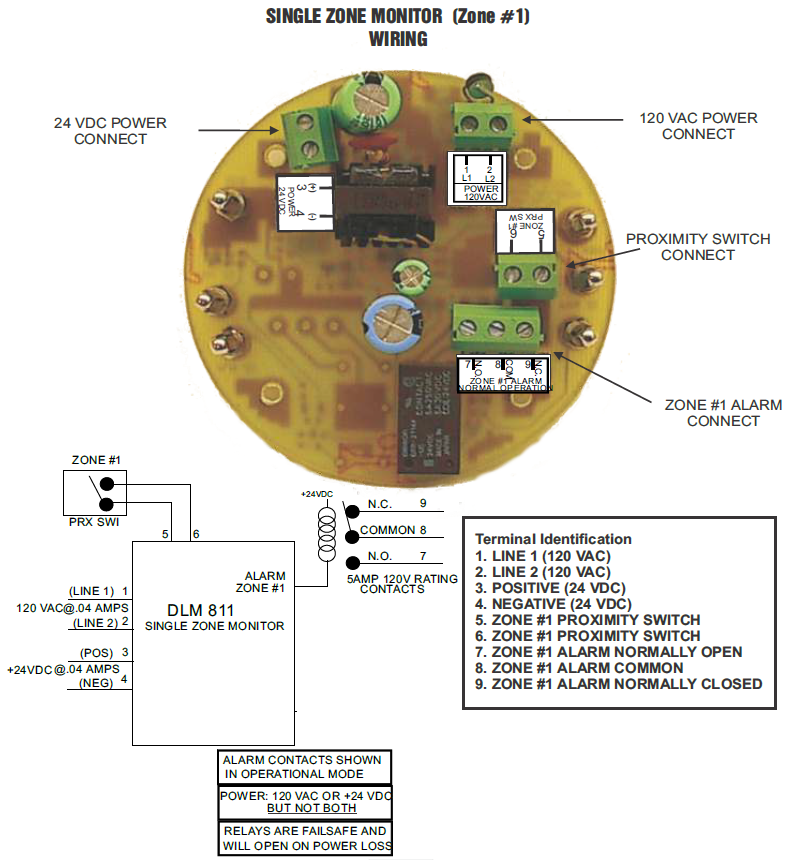

SPECIFICATIONS

Enclosure.............................Compliant with Class I Division I Groups B, C, D
Power....................................20VAC or 24VDC@.040 amps
Alarm Switch........................Form C Contact 120 VAC @ 5 amps N.O. COM. N.C.
Alarm Time............................Programmable - 3 sec to 250 seconds
Temperature Range...............0o to +150o F (-32o to +70o C)
Warranty.................................1 Year
Display...................................Cycle Time(Sec), Flow Rate(Pints/Day), Total Strokes, Alarm Status, Total System Run Time(Hours)
Memory.................................100 Cycle times Zone #2, 100 Cycle times Zone #1

DESCRIPTION

The DLM-811 is a microprocessor based single mode monitor for the display and control of progressive in- line lubrication systems. Proximity switch, mounted to the divider block system for Zone #1, signals the DLM-811 each cycle. The time between cycles is displayed on the LCD readout as time into the current cycle as well as the time for the previous cycle. Each 10 seconds the display changes to show the flow rate in pints/day, cycle time, total strokes, and system run time for Zone #1. If the time between cycles exceeds the programed alarm time an alarm signal is activated. The last I00 cycle times for the Zone #1 lubrication system is stored in permanent memory and can be read out via local control of program buttons.

ZONE 1

PROGRAMMING FUNCTIONS

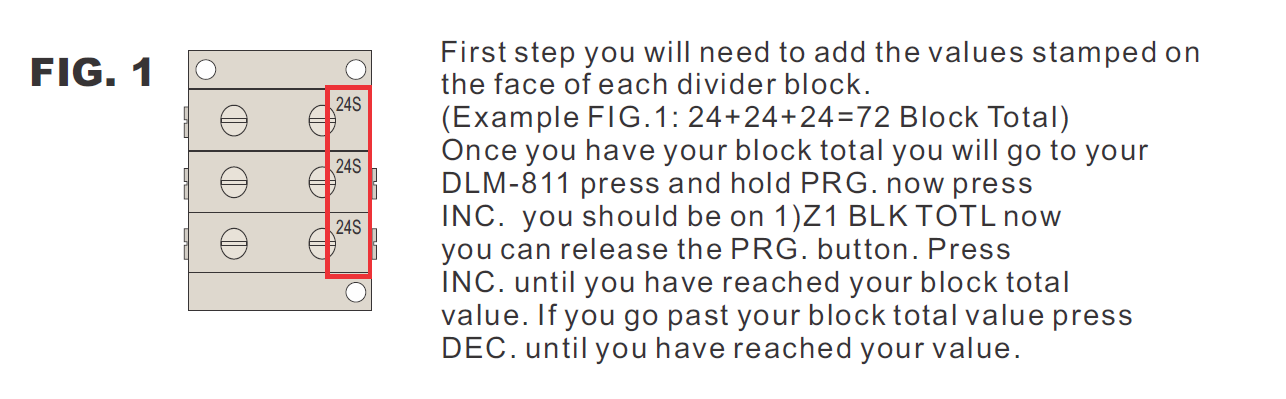

Press PRG. and hold PRG. use INC. or DEC. buttons to change functions. Pressing Exit button will return to normal operation. 1)Z1 BLK TOTL= Block Total - Programmable between 18-144. Use INC or DEC Button to set block Total for Zone #1.

3)Z1 ALR SEC= Alarm Time - Programmable between 3-250 seconds. Use INC or DEC Button to set block Total for Zone #1.
5)MEMORY Z1= Cycle Time Memory - Use INC or DEC Button to view last 100 cycle times for Zone #1.
NOTE: Memory is permanent, will not be lost in case of power failure.
7)RESET?_= System Reset - Press the INC or DEC Buttons at the same time to reset total strokes and hours.

DISPLAY: Automatically scrolls between Pints/Day, Cycle Time, Total Strokes, System Run Time.

Pressing (INC.) W ill lock display at the present function.

Pressing the (EXIT) will release the scroll lock and retur n to automatic.

Four(4) panel mounted buttons are used to change the setup parameters.

Program menu items are accessed by pressing the PRG button.

Pressing the PRG and either INC. or EXT at the same time will access the other menu items.

The INC. and EXT buttons will change a menu item slowly at first then rapidly if held down.

The exit button will return to the display mode if pressed at any time.
