Low Power Ohms Range

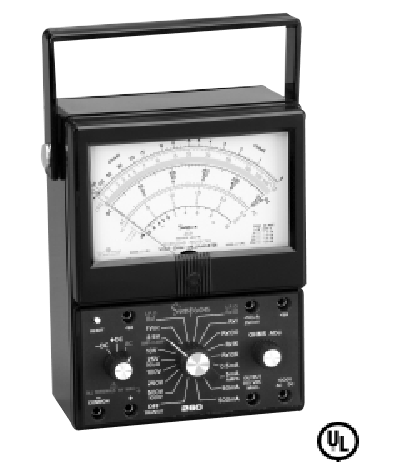

Based on the famous 260, the 260-6XLPM has extra features and extra ranges. The
large viewing area with color-coded scales minimizes measurement mistakes and
visual confusion. The 260-6XLPM allows you to accurately conduct in-circuit tests without
risk to components or causing digital circuits to switch states. The durable ABS plastic
case also provides high-impact resistance and increased drop protection in the
toughest environments.
Instant Trend Information for Quick Positive "Yes/No" Checks
2 Extra “Low Power” Ohms Ranges (Rx1 and Rx10)
UL Listed
Mirrored Scale for Parallax Reduction
Resettable Overload Circuit Protection Relay
Includes 9 V and 1.5 V Batteries and Probe Test Leads With Alligator Clips
SPECIFICATIONS
DC Voltage
| Ranges |
Accuracy |
Sensitivity |
| 250mV, 1V, 2.5V, 10V ,25V,
50V, 250V, 500V, 1000V |
2% of full scale |
20k per volt |
AC Voltage
| Ranges |
Accuracy |
Sensitivity |
| 2.5V, 10V, 25V, 50V, 250V,
500V, 1000V |
3% of full scale |
5k per volt |
AC Current
Up to 250 AC amperes with AC Amp-Clamp Adapter Accessory 00541.
Decibel
5 Ranges: -20 to +39dB
Reference: 0dB= 1mW into 600
DC Current
| Ranges |
Accuracy |
Voltage Drop (Nominal) |
| 50A, 0.5mA, 5mA, 50mA,
500mA, 5A |
1.5% full scale 50A
2.0% of full scale, all other |
250 mV on 50A/0.5mA/5A;
252mV on 5mA/50mA;
400mV on 500mA; |
Standard Power Resistance
| Ranges |
Accuracy |
Maximum Indication |
Open Circuit Voltage |
Short Circuit Current |
| Rx1
Rx100
Rx1K
Rx10K |
2.5° of arc on Rx1
2.0° of arc all other |
0-2K
0-200K
0-2M
0-20M |
1.5V
1.5V
1.5V
9.0V |
250mA
2.5mA
250A
125A |
Low Power Resistance
| Ranges |
Accuracy |
Maximum Indication |
Open Circuit Voltage |
Short Circuit Current |
| Rx1
Rx10K |
2.5° of arc on Rx1
2.0° of arc all other |
0-1K
0-10K |
100mV
100mV |
4.9mA
490A
|
FUSE: F1 1A, 250V, type 3AG, quick acting Littelfuse® Type 312001; F2 2A, 600V
Littelfuse® Type BLS or 2A 600V, Bussman® Type BBS.
BATTERIES: 1.5V AA, 9V (NEDA No. 13F, 1604A)
SIZE: 5 1/4" x 7" x 3 1/8" (13.34 x 17.78 x 7.94 cm)
WEIGHT:2 1/4 lbs. (1.02 Kg)
RATED CIRCUIT-TO-GROUND VOLTAGE: 1000V AC/DC Max
Specifications subject to change without notice.
| VOM |
Catalog Number |
Accessories |
Catalog Number |
Accessories |
Catalog Number |
Accessories |
Catalog Number |
| 260-6XLM
260-6XLPM |
12206
12211
|
Universal Kit, Deluxe 19-Piece
Universal Kit, 14-Piece
Probe Leads w/Screw-on Alligator Clip) |
00818
05577
00125
|
Probe Set, Replaceable Tip, Banana
Lead Set, Alligator, Banana
Clip Set, Alligator, Screw-On
150-2 Amp Clamp Adapter, AC
151-2 Power Line Splitter (for 150-2) |
07538
07500
00425
00541
00544
|
Case, Yellow Padded Polyester
Case, Black Padded Polyester
Case, Hard Leatherette Front Load
Case, Molded Plastic |
00832
00834
00805
45028 |
